Plain Woven Fiberglass Fabric Cloth , Fireproof Fiberglass Mesh Cloth

Plain Woven Fiberglass Fabric Cloth , Fireproof Fiberglass Mesh Cloth

fiberglass cloth roll

woven fiberglass cloth

Place of Origin:

CHINA

Brand Name:

Huili

Certification:

FACTORY CERTIFICATE

Model Number:

HLBX3-3

Contact Us
Request A Quote
Product Details
Material:
Fiberglass Yarn
Weight:
100g,140g,160g,200g,310g,400g,600g,800g,etc
Width:
100/104/125cm
Length:
30m,50m,100m
Thickness:
0.1mm,0.18mm,0.26mm,0.4mm,0.8mm,etc
Alkali Content:
Alkali Free
Weave Type:
Plain Weave
Surface Treatment:
Silicon Coated
Payment & Shipping Terms
Minimum Order Quantity
10000m2
Price
Negotiable
Packaging Details
plastic woven bag or pallet
Delivery Time
25 days
Payment Terms
L/C, D/P, T/T
Supply Ability
10 tons per day
Product Description

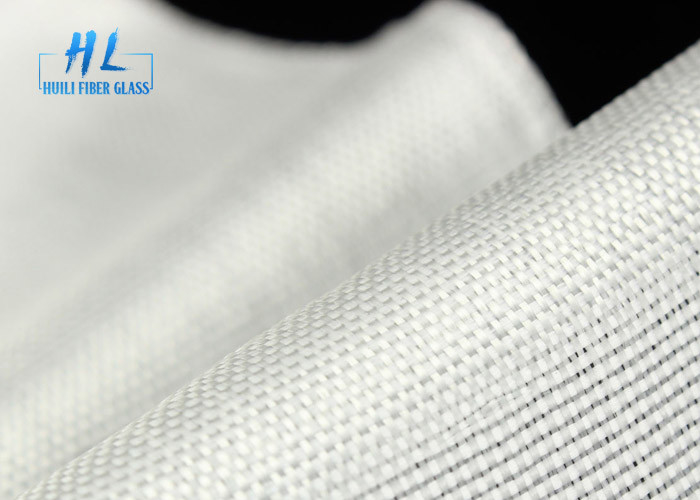

White Plain Woven thermal insulation fireproof Fiberglass Cloth 200g Per m2





Fiberglass Cloth



Product description:



Fiber Glass Cloth is an ideal high tensile strength industrial material with excellent properties of demensional stability,fire resistant,high heat resistant,good chemical resistance.



The main series including all kinds of C-glass and E-glass cloth and woven roving with different weave type such as:plain weave,satin weave,etc.



All the thickness,gram weight,density,width,length,etc all can be made and adjusted according to customers' exact requirements and were able to make correspondent after treatment for the cloth according to the different applications of the cloth.



Fiberglass cloth is an engineering material, which has many excellent characteristics, such as anti-burning, corrosion resistant, stable structure, heat-isolating, minimum elongated shrinkage, high intensity, etc. This new material product has already covered many domains such as electric appliance, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention and environmental protection, etc. According to fabric organizational structure and appearance, there are such kind of products: plain weave, twill weave, satin weave, gauze weave.



Features:



1. Fire resistance, heat resistance and UV resistance;

2. Good performance in chemical-corrosion resistance;

3. Light weight, fatigue resistance, good transmittance;

4. Good electrical conductivity, excellent dimensional stability;

5. Small thermal expansion coefficient;

6. Easily impregnated with resin, high cohesive strength.



Application:



1. Petrochemical: pipes, tanks, liquefied petroleum gas cylinders

2. Transportation: cars, buses, tankers, tankers, tanks, liquefied gas cylinders

3. Electrical industry: industrial and household appliances, printed circuit boards and electronic equipment shell

4. Building materials: Column beam, fence, wave color tile, decorative plate, kitchen

5. Machinery industry: aircraft structure, fan blades, firearms parts, artificial bones and teeth

6. Science and technology defense: aerospace industry, weapons communications industry; missile satellite, space shuttle, military base, helmet, transformation of the aircraft cab door

7. Leisure culture: fishing rod, golf club , Tennis racket, bow and arrow, pole, bowling, swimming pool, snowboard



FRP Fabrics

Fiberglass cloth is mainly shuttle woven, producing an excellent appearance and using high performance. It is widely used in aircraft and space flight industry, ship industry, chemical industry, medical industry, military industry, sports goods, etc.



Product Specification:



Model Width(mm) Weight(g/m2) Yarn(tex)
CWR-200 900/1000 200±16 200
CWR-400 900/1000 400±32 500
CWR-600 10001270 600±48 1200
EWR-200 900/1000 200±16 200
EWR-400 1000/1270 400±32 600
EWR-600 1000/1270 600±48 1200



Product Characteristics:



1.Consistent thickness,excellent surface treatment

2.Rapid impregnating and good compatibility with resin

3.Uniform rension,high demensional stability and making handing easy

4.Godd mechanical properties and high strength of parts



Product Application:

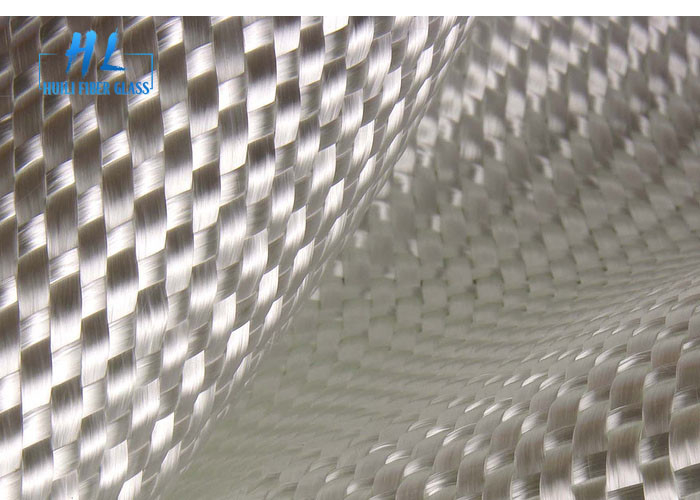

E-glass woven roving is widely used in hand lay up,mold press,GRP forming process and robot

processes to manufacture boats,vessels,plane, automobile parts ,panels,storage tanks.

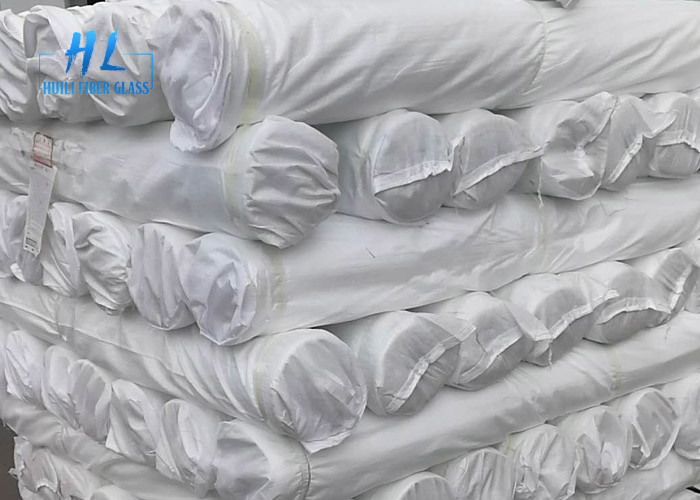

Packing Style:



It is rolled on a paper core with a diameter of 100mm, then packed into a polyethylene bag, then outside packed into a separate cardboard box. Finally, the product can be either shipped with cardboard box only or with pallet.
