White Color Fiberglass Chopped Strand Mat Direct Roving Type Silane - Based

White Color Fiberglass Chopped Strand Mat Direct Roving Type Silane - Based

chopped strand glass fiber

chopped glass fibers

Place of Origin:

Wuqiang, China

Brand Name:

Huili

Contact Us
Request A Quote
Product Details
Glass Type:
E-glass
Technique:
Pultrusion
Surface Treatment:
Silane-Based
Color:
White
Filament Diameter:
17-24um
Roving Type:
Direct Roving
Payment & Shipping Terms
Minimum Order Quantity
10000m2
Price
Negotiable
Packaging Details
Standard export packing or packed as customers' requests.
Delivery Time
15-20 work days
Payment Terms
T/T, L/C, D/P, Western Union
Supply Ability
1000 tons per week
Product Description

White Color Emulsion Bonded Epoxy Fiberglass Chopped Strand Mat For Pultruded Sections



Product Description

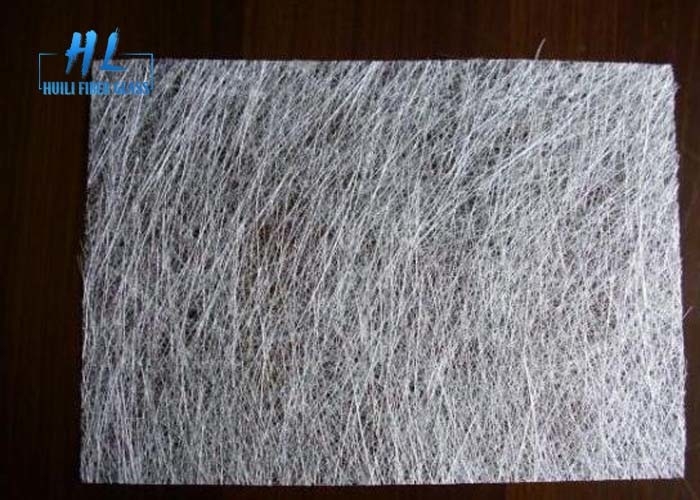

Fiberglass chopped strand mat is a non-woven E-or C-glassfiber mat, product manufactured by spreading continuous filament roving of 50mm in length randomly and uniformly in combination with polyester binder in powder form (or other binder in emulsion form). This product is characterized by good combination of resin, easy operation, good wet strength retention, good laminate transparency and low cost.



Fiberglass chopped strand mat is made of chopped strands in 50mm length, with powder binder or emulsion binder. It is compatible with unsaturated polyester, vinyl ester, epoxy and phenolic resins. The products are most widely used in hand lay-up process and can also be used in filament winding, compression molding and continuous laminating processes. The typical end-use applications include various panels, Tank, boats, FRP roofing sheet, Auto roof, bathroom equipment and cooling towers etc.



Product Specification



Area weight: 100g/m2, 150g/m2, 180g/m2, 200g/m2, 225g/m2, 300g/m2, 325g/m2, 375g/m2, 450g/m2, 600g/m2, 800g/m2

Width: 1.04m, 1.25m, 1.32m, 2.5m, 3m, 3.3m, etc.

Roll weight: 30kg,35kg, 45kg, 80kg, etc.



E,C

Specification

Weight

g/m

Breaking strength

N/150mm

Speed of

impregnations

Package

Weight (kg)

E-MC100 100 30 60 20
E-MC200 200 30 180 30
E-MC350 300 43 180 30
E-MC450 450 60 180 30
E-MC600 600 80 180 30



Product Features



1. Good wet-out, Easy to form, easy roll-out and air release.

2. Even thickness, low fuzz.
3. Good resistance to watering and chemical agents in anti-corrosion applications.
4. Very high tensile strength, suitable for filament winding or continuous laminating.
5. Smooth laminate surface, good laminate transparency.



Product Applications



It is suitable for the applications by hand lay-up FRP moldings, such as: various sheets and panels, boat hulls, bath tubs, cooling towers, corrosion resistant, vehicles etc.
