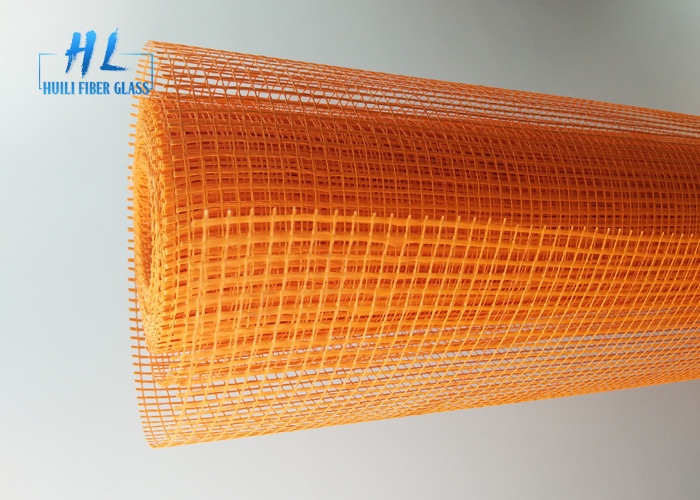

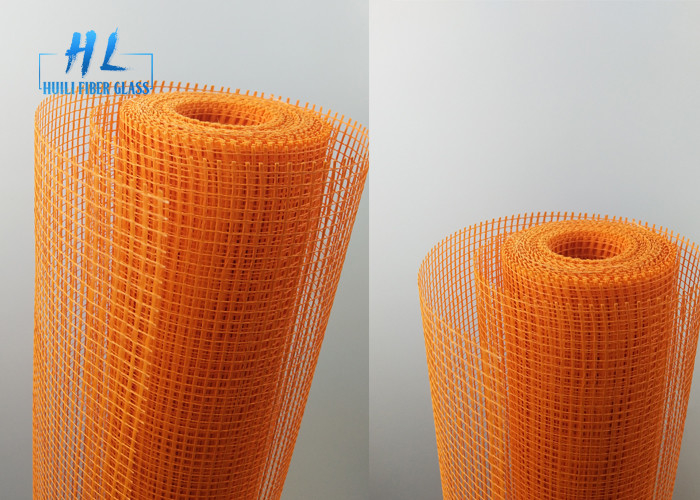

Building Material Alkali Resistant 5*5MM 140G Fiberglass Mesh with different color
Introduction of Fiberglass Mesh
Fiberglass mesh, can be made of several of types of fiberglass yarns, is a inorganic non-metallic material with excellent properties. Featured with outstanding water, alkali and aging resistance, good flexibility and softness, it is widely used in reinforcing walls, natural marble, plaster board, artificial stone materials and exterior insulation finishing system.
There are two weave methods for fiberglass mesh, including plain weave and twill weave. Black silicone coated fiberglass mesh is also available. Both of them can be used as building materials for various architectural styles, especially for the renovation of building surfaces. As a fiberglass mesh manufacturer, we can provide various mesh sizes and colors for different needs.
Specification of Fiberglass Mesh
Material of the base:Fiberglass yarn
Type of weave (name):Leno
Hole Size:2.8x2.8mm,4x4mm,5x5mm,10x10mm

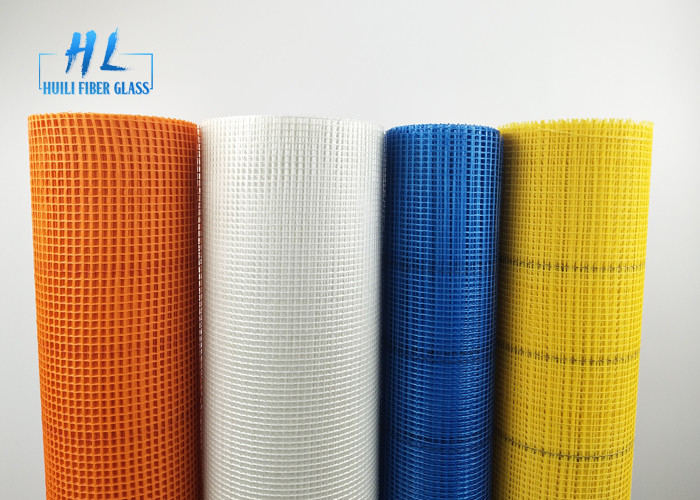

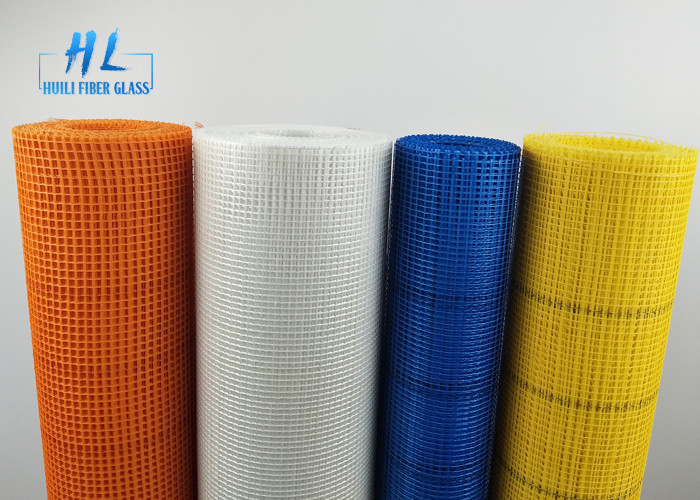

Colored fibers woven:White,Green,Blue,Orange,and any color
Coating:Latex Coating, Urea Coating
Length of the roll:30m,50m,100m.
Height of the roll:0.2m,0.5m,1m,1.2m,1.5m,1.8m,
Weighting:45g,80g,100g,110g,120g,150g,160g and so on.
NO. | Specifications | Mesh size mm |
Yarn density (tex) |
Mass g/m2 |
Tensile strength N/5X20cm |
|||
warp | weft | warp | weft | warp | weft | |||
1 | 4×4-75 | 4 | 4 | 48/2 | 200 | 75±3 | 700 | 850 |
2 | 4×4-90 | 4 | 4 | 67/2 | 200 | 90±3 | 950 | 1100 |
3 | 4×4-145 | 4 | 4 | 134/2 | 240 | 145±5 | 1500 | 1500 |
4 | 4×4-160 | 4 | 4 | 134/2 | 300 | 160±5 | 1500 | 1650 |
5 | 4×5-110 | 4 | 5 | 100/2 | 360 | 110±5 | 1100 | 1200 |
6 | 4×5-125 | 4 | 5 | 100/2 | 280 | 125±5 | 1200 | 1300 |
7 | 4×5-145 | 4 | 5 | 134/2 | 300 | 145±5 | 1400 | 1400 |
8 | 4×5-160 | 4 | 5 | 134/2 | 360 | 160±5 | 1500 | 1600 |
9 | 5×5-90 | 5 | 5 | 67/2 | 240 | 90±3 | 950 | 1150 |
1. 75g / m2 or less: Used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.
2. 110g / m2 or about: Widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .
3. 145g/m2 or about: Used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).
4. 160g / m2 or about: Used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature
Quality A: Emulsion coated, flexible, high strength, top quality. (emulsion)
Quality B: Emulsion coated, but lower strength than quality A.(emulsion)
Quality C: Urea resin coated, normal quality.(urine)
Feature of Fiberglass Mesh
